Specifications

Harley-Davidson Fat Boy

Explore Harley-Davidson Fat Boy specifications & features across all variants — engine, dimensions, safety and more.

₹28.03 - ₹28.56 Lakh

Ex-showroom Price

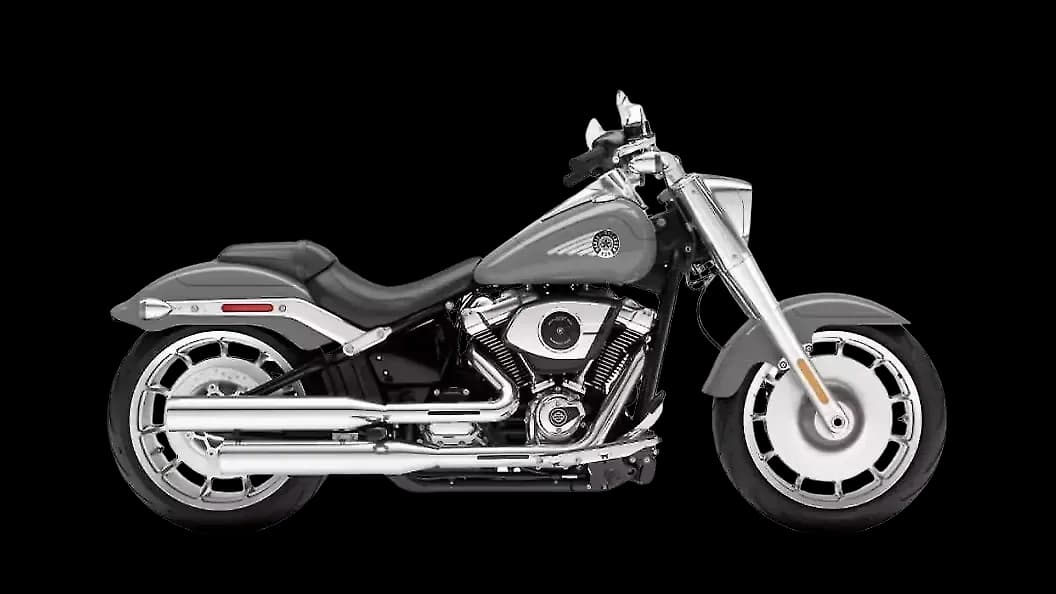

Fat Boy

Specifications & Features.

Key Specifications

Fuel TypePetrol
Engine2 Cylinder, Liquid Cooled, 4 Valves
Transmission6 Speed Manual
Power93.87 bhp @ 5020 rpm

Power & Performance

Max Power93.87 bhp @ 5020 rpm
Max Torque155 Nm @ 3250 rpm
Top Speed177 kmph
Transmission6 Speed Manual
Riding Range340.2 km
Riding ModesNo
Fuel TypePetrol
Displacement1868 cc

Brakes & Wheels

Braking SystemDual Channel ABS
Front BrakeDisc, 300 mm, 4 piston caliper
Rear BrakeDisc, 292 mm, 2 piston caliper
Wheel TypeAlloy
Wheel SizeFront - 18 inch, Rear - 18 inch
Tyre SizeFront - 160/60 - R18, Rear - 240/40 - R18
Tyre TypeTubeless
Tyre Pressure (Rider Only)Front - 36 psi, Rear - 40 psi

Suspensions & Chassis

Front SuspensionDual-bending valve 49 mm telescopic with aluminum fork triple clamps
Rear SuspensionHidden, free piston, coil-over monoshock; 43mm stroke
Rear Suspension Preload Adjuster1
Chassis TypeMild steel, tubular frame

Warranty and Services

Vehicle WarrantyUnlimited km or 2 years

Dimensions

Kerb Weight317 kg
Seat Height675 mm
Ground Clearance115 mm
Overall Dimensions (LxWxH)2370 mm x 985 mm x 1095 mm
Wheelbase1665 mm
Fuel Tank Capacity18.9 litres
Reserve Fuel Capacity3.8 litres

Safety & Convenience

USB Charging PortYes
Cruise ControlAvailable
Start TypeSelf Start
Side Stand Engine/Motor Cut-off1
Kill Switch1
Saree Guard1
Traction ControlYes
Silencer Cover1

Mobile App Monitoring

Vehicle Location TrackingNo

Lights

HeadlightLED Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightLED
Hazard Warning Lights1
Pass Light1
Turn SignalLED

Seat & Storage

Under Seat StorageNo
Pillion SeatStepped Seat
Pillion ComfortFootrest, Grab rail

Instrument Cluster

SpeedometerAnalogue
TachometerDigital
Clock1
Gear Indicator1
Instrument Console5 " Semi-Digital Display
Mobile Phone ConnectivityNo
GPS & NavigationNo
OdometerDigital

Colors

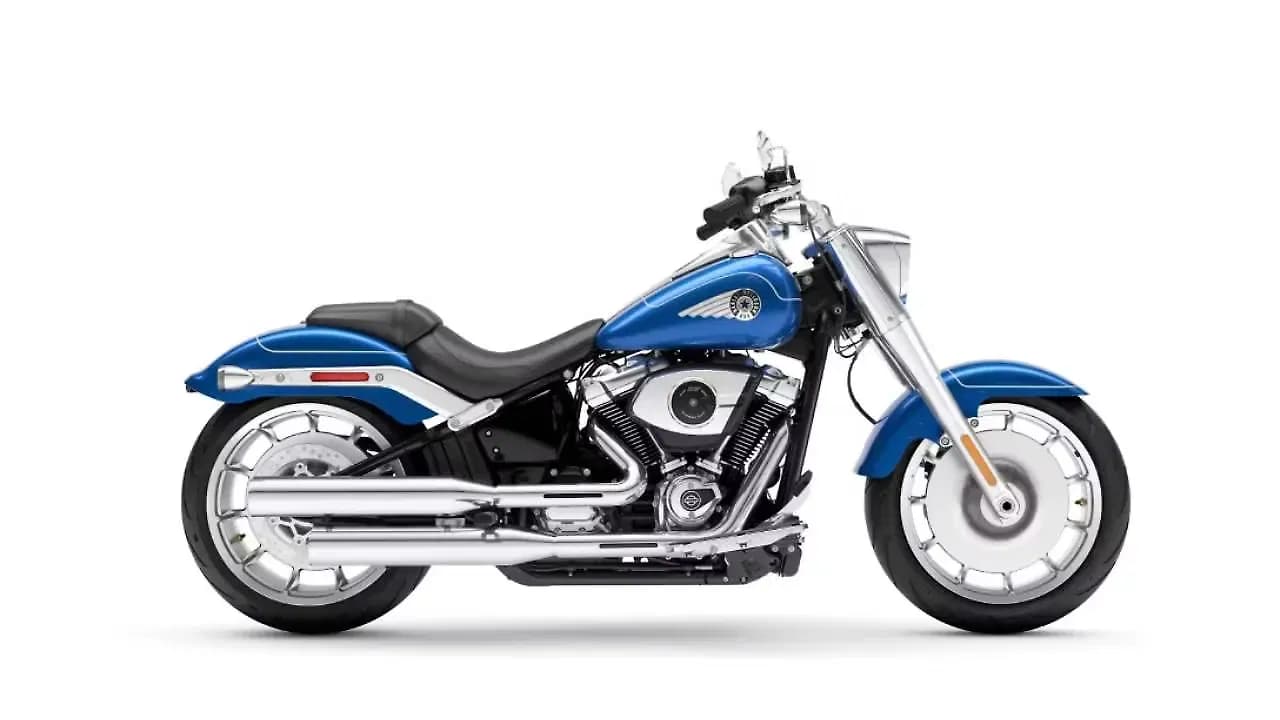

Harley-Davidson Fat Boy in Blue Burst
Blue Burst

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
