Specifications

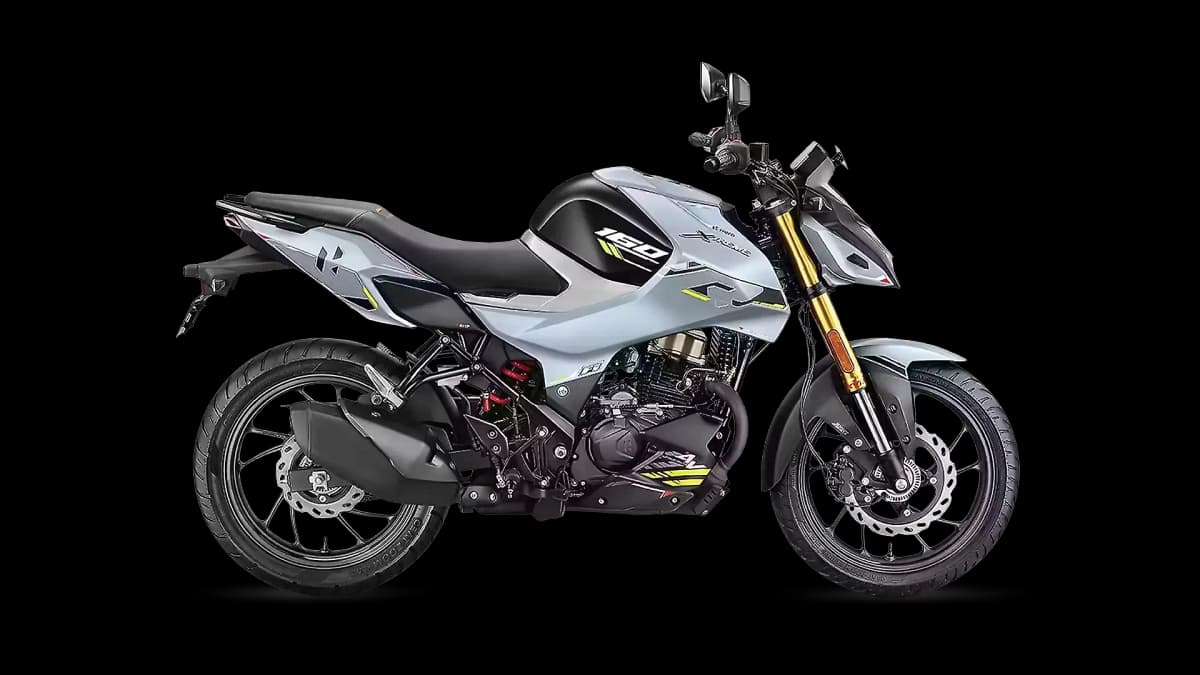

Hero Xtreme 160R 4V

Explore Hero Xtreme 160R 4V specifications & features across all variants — engine, dimensions, safety and more.

₹1.33 - ₹1.38 Lakh

Ex-showroom Price

Xtreme 160R 4V

Specifications & Features.

Key Specifications

Fuel TypePetrol
Engine1 Cylinder, Air/Oil Cooled, 4 Valves
Transmission5 Speed Manual
Power16.6 bhp @ 8500 rpm

Power & Performance

Max Power16.6 bhp @ 8500 rpm
Max Torque14.6 Nm @ 6500 rpm
Top Speed115 kmph
Transmission5 Speed Manual
Riding Range540 km
Riding ModesNo
Fuel TypePetrol
Displacement163.2 cc

Brakes & Wheels

Braking SystemDual Channel ABS
Front BrakeDisc, 276 mm, 2 piston caliper
Rear BrakeDisc, 220 mm, 1 piston caliper
Wheel TypeAlloy
Wheel SizeFront - 17 inch, Rear - 17 inch
Tyre SizeFront - 100/80 - 17, Rear - 130/70 - R17
Tyre TypeTubeless
Tyre Pressure (Rider Only)Front - 25 psi, Rear - 28 psi

Suspensions & Chassis

Front SuspensionKYB Upside Down Forks, 37 mm DIA
Rear Suspension7 Step Adjustable Monoshock
Rear Suspension Preload Adjuster1
Chassis TypeTubular Underbone Diamond Type

Warranty and Services

Vehicle Warranty70,000 km or 5 years
No. of Free Services4
1st Service500-750 km or 60 days
2nd Service6000- 6500 km or 180 days
3rd Service12000- 12500 km or 360 days
4th Service18000- 18500 km or 540 days

Dimensions

Kerb Weight145 kg
Seat Height795 mm
Ground Clearance165 mm
Overall Dimensions (LxWxH)2029 mm x 793 mm x 1052 mm
Wheelbase1333 mm
Fuel Tank Capacity12 litres
Reserve Fuel Capacity1.9 litres

Safety & Convenience

USB Charging PortYes
Cruise ControlNot Available
Start TypeSelf Start
Side Stand Engine/Motor Cut-off1
Kill Switch1
Adjustable leversNo
WindscreenNo
Center stand availability1

Mobile App Monitoring

Vehicle Location TrackingLive Location
Additional FeaturesPanic Brake Alert System

Lights

HeadlightLED Projector Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightLED
Hazard Warning Lights1
Pass Light1
Turn SignalLED

Seat & Storage

Under Seat StorageNo
Pillion SeatYes
Pillion ComfortFootrest, Grab rail

Additional Features

Additional FeaturesPanic Brake Alert System

Instrument Cluster

SpeedometerDigital
TachometerDigital
Clock1
Gear Indicator1
Instrument ConsoleLCD Display
Mobile Phone ConnectivityBluetooth
GPS & NavigationTurn by Turn Navigation
OdometerDigital

Colors

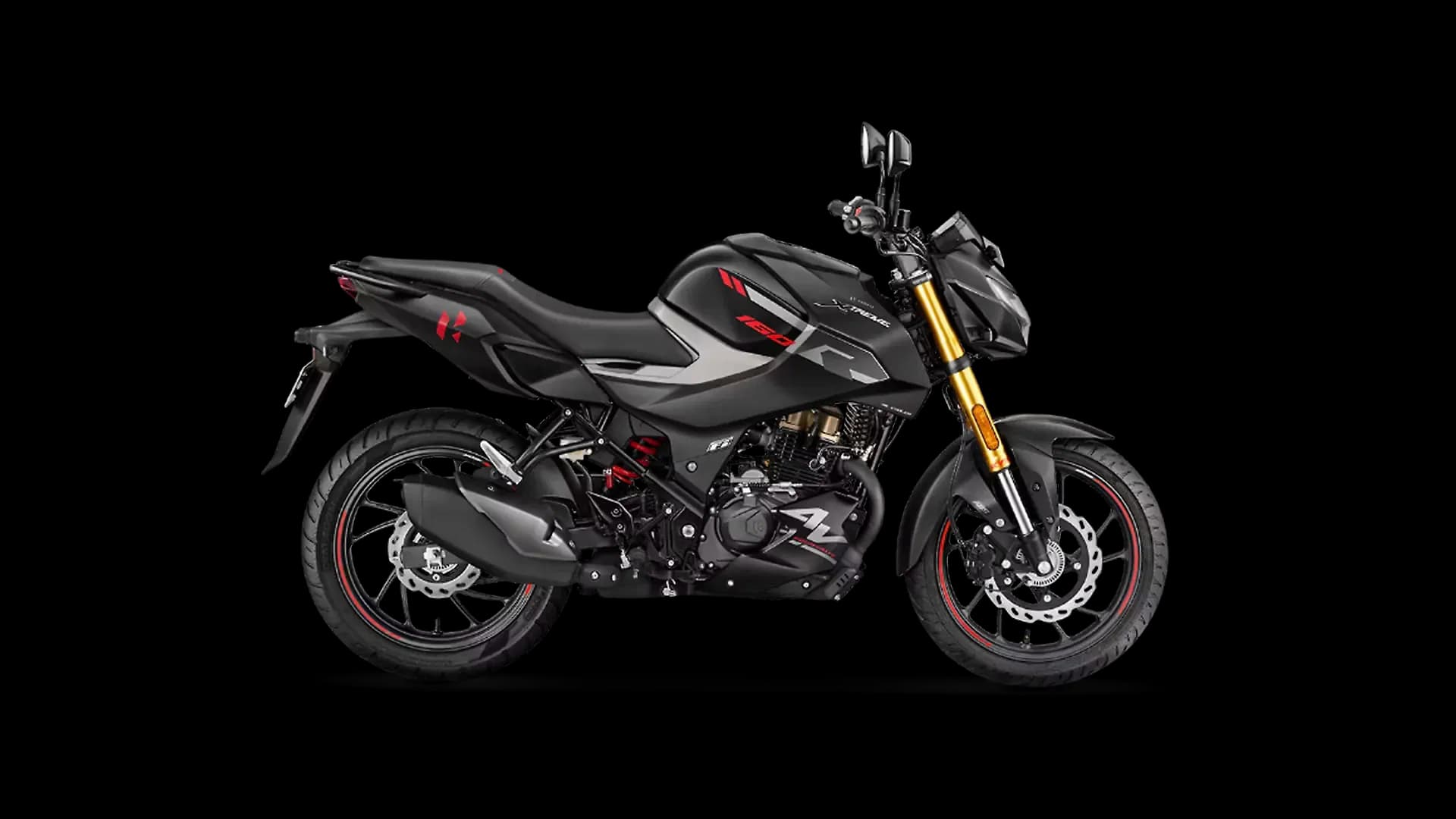

Hero Xtreme 160R 4V in Stealth Black
Stealth Black

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
