Specifications

Honda NX500

Explore Honda NX500 specifications & features across all variants — engine, dimensions, safety and more.

₹7.44 Lakh

Ex-showroom Price

NX500

Specifications & Features.

Key Specifications

Fuel TypePetrol
Engine2 Cylinder, Liquid Cooled
Transmission6 Speed Manual
Power46.9 bhp @ 8600 rpm

Power & Performance

Max Power46.9 bhp @ 8600 rpm
Max Torque43 Nm @ 6500 rpm
Transmission6 Speed Manual
Fuel TypePetrol
Displacement471 cc
Mileage - Owner Reported26.5 kmpl
Transmission TypeChain Drive
Gear Shifting Pattern1 Down 5 Up

Brakes & Wheels

Braking SystemDual Channel ABS
Front BrakeDisc, 296 mm, 4 piston caliper
Rear BrakeDisc, 240 mm, 1 piston caliper
Wheel TypeAlloy
Wheel SizeFront - 19 inch, Rear - 17 inch
Tyre SizeFront - 110/80 - R19, Rear - 160/60 - R17
Tyre TypeTubeless
Tyre Pressure (Rider Only)Front - 29 psi, Rear - 36 psi

Suspensions & Chassis

Front SuspensionShowa 41mm SFF-BP upside-down (USD) front forks
Rear SuspensionPro-Link mono-suspension
Rear Suspension Preload Adjuster1
Chassis TypeSteel Diamond

Dimensions

Kerb Weight196 kg
Seat Height830 mm
Ground Clearance181 mm
Overall Dimensions (LxWxH)2165 mm x 829 mm x 1413 mm
Wheelbase1447 mm
Fuel Tank Capacity17.5 litres
Reserve Fuel Capacity2.6 litres

Safety & Convenience

Start TypeSelf Start
Side Stand Engine/Motor Cut-off1
Kill Switch1
Saree Guard1
QuickshifterNo
Traction ControlYes
Silencer Cover1

Mobile App Monitoring

Vehicle Location TrackingNo

Lights

HeadlightLED Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightLED
Pass Light1
Turn SignalLED
Additional FeaturesEmergency Stop Signal

Seat & Storage

Under Seat StorageNo
Pillion SeatYes
Pillion ComfortFootrest, Grab rail

Instrument Cluster

SpeedometerDigital
TachometerDigital
Clock1
Gear Indicator1
Instrument Console5 " TFT Display with Brightness Control
Mobile Phone ConnectivityBluetooth
GPS & NavigationTurn by Turn Navigation
OdometerDigital

Colors

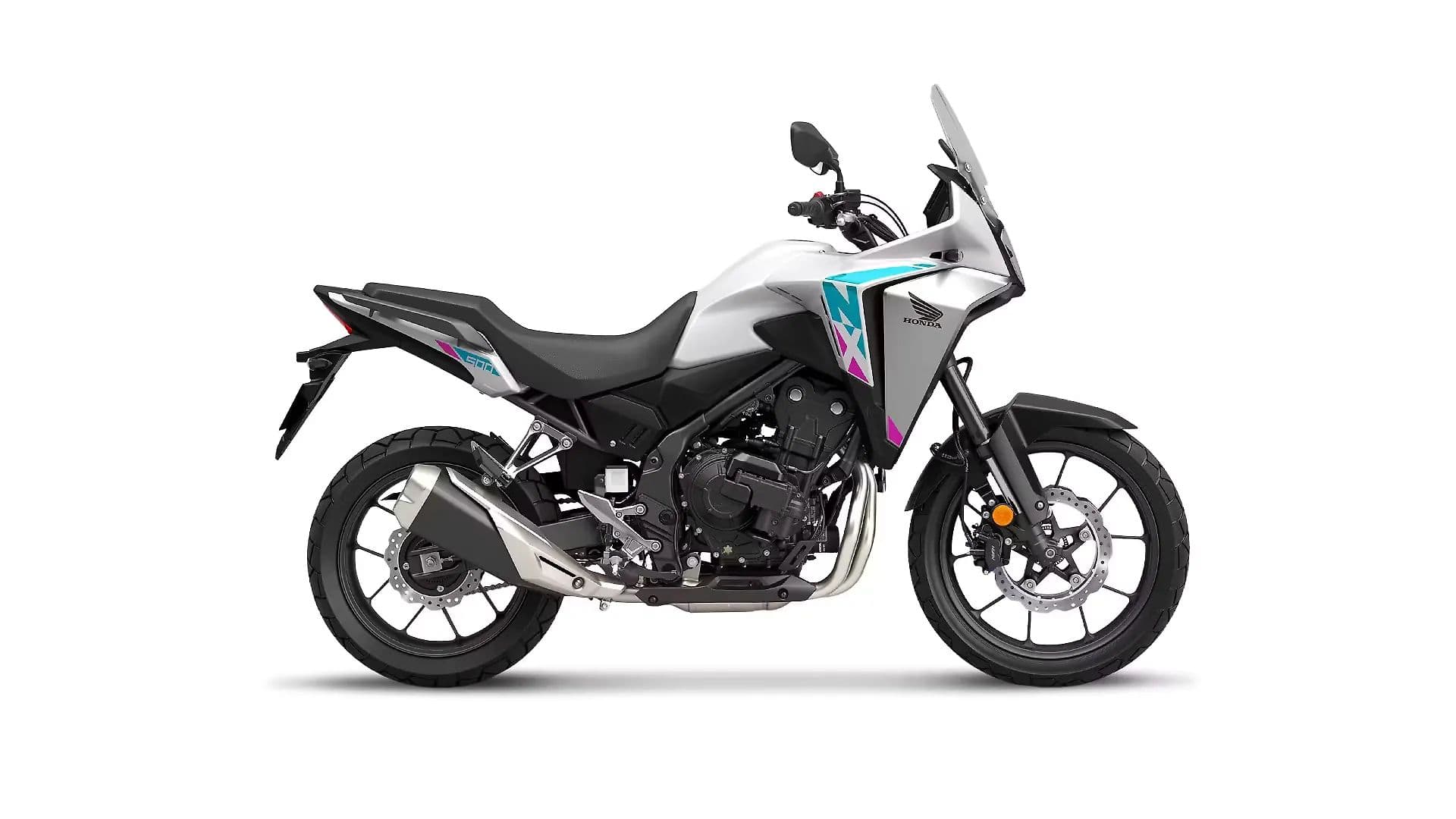

Honda NX500 in Pearl Horizon White
Pearl Horizon White

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
