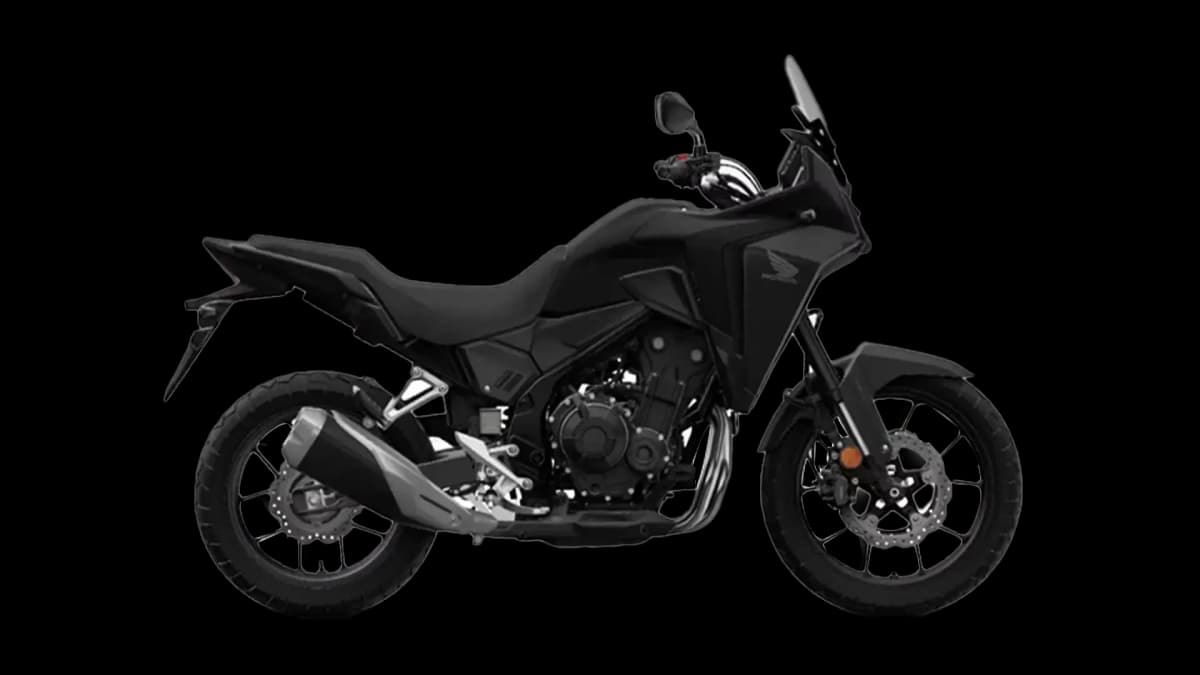

Honda NX500
Explore Honda NX500 specifications & features across all variants — engine, dimensions, safety and more.
₹6.33 Lakh
Ex-showroom Price
Specifications & Features.
Key Specifications
Fuel TypePetrol
Engine2 Cylinder, Liquid Cooled
Transmission6 Speed Manual
Power46.9 bhp @ 8600 rpm
Dimensions
Wheelbase1447
Ground Clearance181
Kerb Weight196 kg
Seat Height830 mm
Overall Dimensions (LxWxH)2165 mm x 829 mm x 1413 mm
Fuel Tank Capacity17.5 litres
Reserve Fuel Capacity2.6 litres
Power & Performance
Max Power46.9 bhp @ 8600 rpm
Max Torque43 Nm @ 6500 rpm
Transmission6 Speed Manual
Fuel TypePetrol
Displacement471 cc
Mileage - Owner Reported26.5 kmpl
Transmission TypeChain Drive
Gear Shifting Pattern1 Down 5 Up
Brakes & Wheels
Braking SystemDual Channel ABS
Front BrakeDisc, 296 mm, 4 piston caliper
Rear BrakeDisc, 240 mm, 1 piston caliper
Wheel TypeAlloy
Wheel SizeFront - 19 inch, Rear - 17 inch
Tyre SizeFront - 110/80 - R19, Rear - 160/60 - R17
Tyre TypeTubeless
Tyre Pressure (Rider Only)Front - 29 psi, Rear - 36 psi
Suspensions & Chassis
Front SuspensionShowa 41mm SFF-BP upside-down (USD) front forks
Rear SuspensionPro-Link mono-suspension
Rear Suspension Preload Adjuster1
Chassis TypeSteel Diamond
Safety & Convenience
Start TypeSelf Start
Side Stand Engine/Motor Cut-off1
Kill Switch1
Saree Guard1
Silencer Cover1
Lights
HeadlightLED Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightLED
Pass Light1
Turn SignalLED
Seat & Storage
Under Seat StorageNo
Pillion SeatYes
Pillion ComfortFootrest, Grab rail
Additional Features
Additional FeaturesEmergency Stop Signal, Honda Selectable Torque Control System
Colors

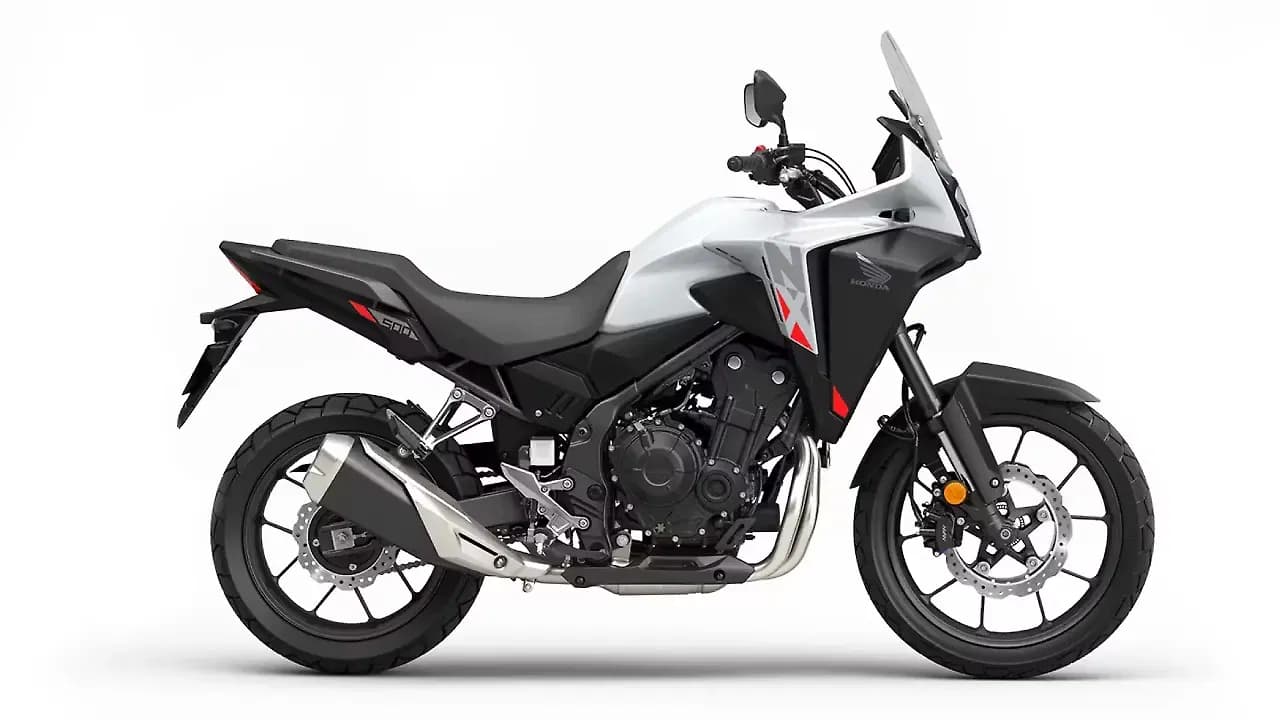

Pearl Horizon White
*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
