Specifications

Kawasaki KLX230RS [2023-2025]

Explore Kawasaki KLX230RS [2023-2025] specifications & features across all variants — engine, dimensions, safety and more.

₹4.81 Lakh

Ex-showroom Price

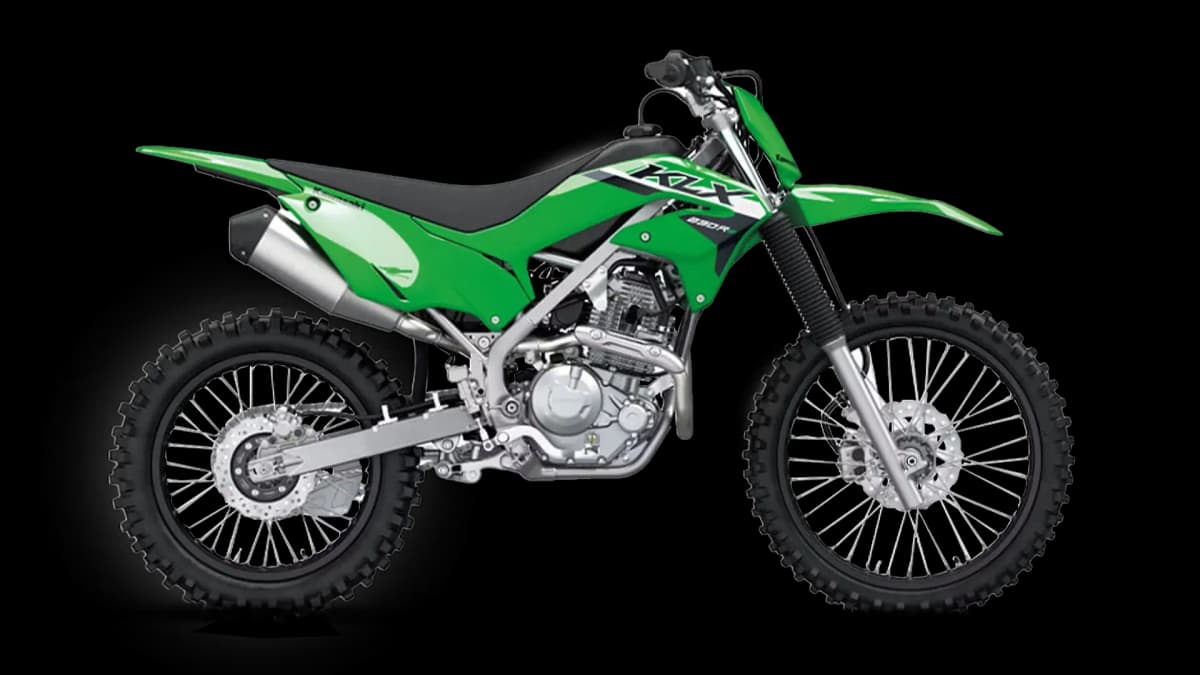

KLX230RS [2023-2025]

Specifications & Features.

Key Specifications

Fuel TypePetrol
Engine1 Cylinder, Air Cooled, 2 Valves
Transmission6 Speed Manual
Power19.57 bhp @ 8000 rpm

Power & Performance

Max Power19.57 bhp @ 8000 rpm
Max Torque20.6 Nm @ 6000 rpm
Top Speed77 kmph
Transmission6 Speed Manual
Riding ModesNo
Fuel TypePetrol
Displacement233 cc
Transmission TypeChain Drive

Brakes & Wheels

Braking SystemStandard
Front BrakeDisc, 213 mm, 2 piston caliper
Rear BrakeDisc, 186 mm, 1 piston caliper
Wheel TypeSpoke
Wheel SizeFront - 21 inch, Rear - 18 inch
Tyre SizeFront - 80/100 - 21 51M, Rear - 100/100 - 18 59M
Tyre TypeTubed
Tyre Pressure (Rider Only)Front - 26 psi, Rear - 33 psi

Suspensions & Chassis

Front SuspensionTelescopic fork / 220 mm
Rear SuspensionNew Uni Trak Swingarm / 223 mm
Chassis TypeTubular, semi-double cradle

Warranty and Services

Vehicle Warranty30,000 km or 2 years

Dimensions

Kerb Weight115 kg
Seat Height900 mm
Ground Clearance275 mm
Overall Dimensions (LxWxH)2035 mm x 840 mm x 1175 mm
Wheelbase1350 mm
Fuel Tank Capacity6.6 litres

Safety & Convenience

USB Charging PortNo
Cruise ControlNot Available
Start TypeSelf Start
Kill Switch1
QuickshifterNo
Traction ControlNo
Silencer Cover1

Mobile App Monitoring

Vehicle Location TrackingNo

Lights

Brake/Tail LightNo
Turn SignalNo

Seat & Storage

Under Seat StorageNo
Pillion SeatYes

Instrument Cluster

SpeedometerDigital
TachometerNo
Instrument ConsoleLCD Display
Mobile Phone ConnectivityNo
GPS & NavigationNo
OdometerDigital
Tripmeter2 Tripmeters, Digital
Low Battery Indicator1

Colors

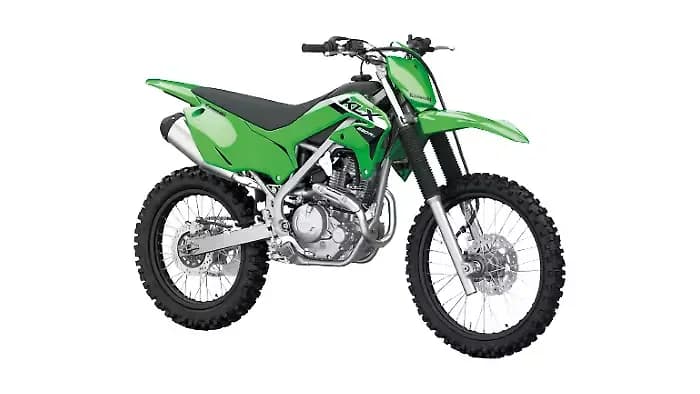

Kawasaki KLX230RS [2023-2025] in Lime Green
Lime Green

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
