Specifications

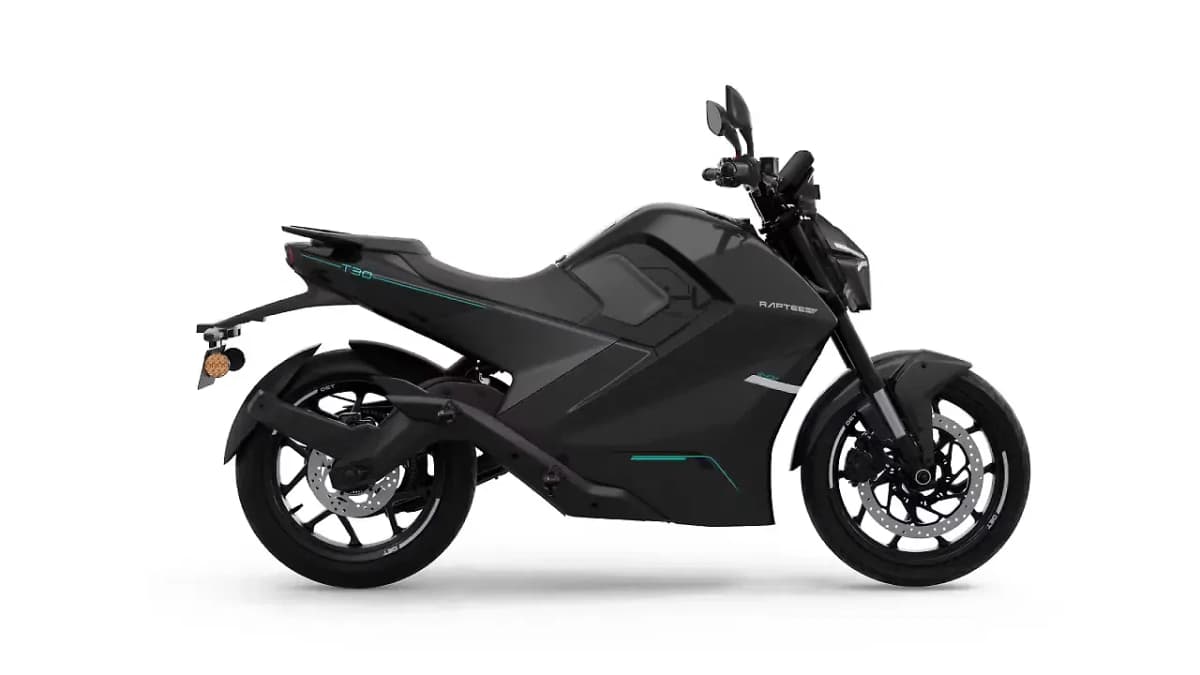

Raptee HV T30

Explore Raptee HV T30 specifications & features across all variants — engine, dimensions, safety and more.

₹2.39 Lakh

Ex-showroom Price

T30

Specifications & Features.

Key Specifications

Fuel TypeElectric
Engine-
TransmissionAutomatic
Power22 kW

Power & Performance

Max Power22 kW
Max Torque70 Nm
Top Speed135 kmph
Acceleration0-60 kmph - 3.5 sec
TransmissionAutomatic
Riding Range200 km
Riding ModesComfort, Power and Sprint
Fuel TypeElectric

Battery & Charging

Battery Capacity5.4 kWh
Charging Time0-80% - 1 hr
Battery Portability1 fixed battery - 5.4 kWh
Fast Charging Availability1
Fast Charging Time0-80% - 0.36 hr
Fast Charger CostNot Included in the Vehicle Price
Battery TypeLi-Ion
Portable BatteryNo

Brakes & Wheels

Braking SystemDual Channel ABS
Front BrakeDisc, 320 mm, 2 piston caliper
Rear BrakeDisc, 230 mm, 1 piston caliper
Wheel TypeAlloy
Wheel SizeFront - 17 inch, Rear - 17 inch
Tyre SizeFront - 110/70 - R17, Rear - 150/60 - R17
Tyre TypeTubeless

Suspensions & Chassis

Front SuspensionUSD fork 37mm
Rear SuspensionPreload Adjustable Monoshock
Rear Suspension Preload Adjuster1
Chassis TypeSteel Trellis Frame

Warranty and Services

Battery Warranty8 year or 80,000 km
Motor Warranty3 year

Dimensions

Kerb Weight177 kg
Seat Height790 mm
Ground Clearance161 mm
Overall Dimensions (LxWxH)- x - x 1102 mm
Wheelbase1420 mm

Safety & Convenience

Keyless Lock/Unlock1
Start TypeSelf Start
Ride by Wire1
Side Stand Engine/Motor Cut-off1
Reverse ModeParking Assist
Regenerative Braking1
Start/Stop Button1

Mobile App Monitoring

Battery Status1
Live Charging Status1
Nearby Charging Stations1
Vehicle Location TrackingLive Location
Additional FeaturesAI Trip planner, Ping My Raptee, Find My Bike

Lights

HeadlightLED Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightLED
Pass Light1
Turn SignalLED

Seat & Storage

Pillion SeatSplit Seat
Pillion ComfortFootrest, Grab rail

Additional Features

Additional FeaturesRide-by-wire, Music Control, Dark and light mode, AI Trip planner, Push navigation, Vehicle charger limit, Smart Watch Connectivity, Roadside Assistance, Ping My Raptee, Find My Bike

Instrument Cluster

SpeedometerDigital
Clock1
Instrument Console7 " TFT Touch Screen Display with Brightness Control
Mobile Phone ConnectivityBluetooth and Internet
GPS & NavigationMap Navigation
OdometerDigital
TripmeterDigital
Stand Alarm1

Colors

Raptee HV T30 in Mercury Grey
Mercury Grey

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
