Specifications

TVS Apache RTR 160 4V

Explore TVS Apache RTR 160 4V specifications & features across all variants — engine, dimensions, safety and more.

₹1.16 - ₹1.39 Lakh

Ex-showroom Price

Apache RTR 160 4V

Specifications & Features.

Key Specifications

Fuel TypePetrol
Engine1 Cylinder, Air/Oil Cooled, 4 Valves
Transmission5 Speed Manual
Power17.31 bhp @ 9250 rpm

Power & Performance

Max Power17.31 bhp @ 9250 rpm
Max Torque14.73 Nm @ 7500 rpm
Top Speed114 kmph
Transmission5 Speed Manual
Riding Range540 km
Riding ModesSport, Urban and Rain
Fuel TypePetrol
Displacement159.7 cc

Brakes & Wheels

Braking SystemSingle Channel ABS
Front BrakeDisc, 270 mm, 2 piston caliper
Rear BrakeDrum, 130 mm
Wheel TypeAlloy
Wheel SizeFront - 17 inch, Rear - 17 inch
Tyre SizeFront - 90/90 - 17, Rear - 110/80 - 17
Tyre TypeTubeless
Tyre Pressure (Rider Only)Front - 25 psi, Rear - 28 psi

Suspensions & Chassis

Front SuspensionTelescopic Fork
Rear SuspensionMono Shock
Rear Suspension Preload Adjuster1
Chassis TypeDouble cradle Split Synchro STIFF

Warranty and Services

Vehicle Warranty60,000 km or 5 years
No. of Free Services3
1st Service500-750 km or 30 days
2nd Service5000-6000 km or 180 days
3rd Service11500-12000 km or 365 days

Dimensions

Kerb Weight144 kg
Seat Height800 mm
Ground Clearance180 mm
Overall Dimensions (LxWxH)2035 mm x 790 mm x 1050 mm
Wheelbase1357 mm
Fuel Tank Capacity12 litres
Reserve Fuel Capacity2.5 litres

Safety & Convenience

USB Charging PortNo
Cruise ControlNot Available
Start TypeSelf Start
Side Stand Engine/Motor Cut-off1
Kill Switch1
Adjustable leversNo
WindscreenNo
Center stand availability1

Mobile App Monitoring

Vehicle Location TrackingNo
Additional FeaturesCrash Alert

Lights

HeadlightLED Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightLED
Pass Light1
Turn SignalLED

Seat & Storage

Under Seat StorageNo
Pillion SeatYes
Pillion ComfortFootrest, Grab rail

Instrument Cluster

SpeedometerDigital
TachometerDigital
Clock1
Gear Indicator1
Average Speed1
Instrument ConsoleLCD Display
Mobile Phone ConnectivityNo
GPS & NavigationNo

Colors

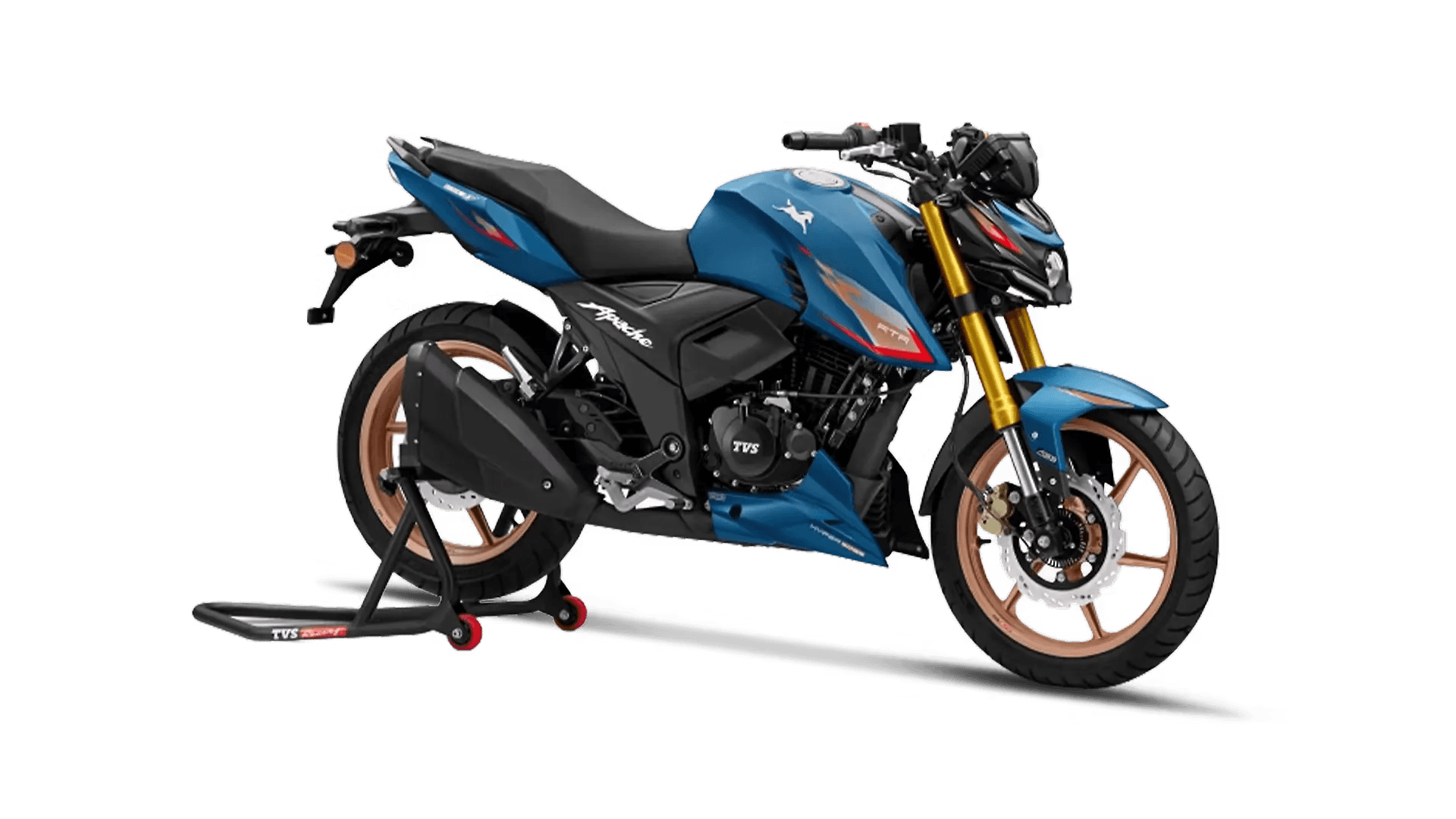

TVS Apache RTR 160 4V in Arctic Teal
Arctic Teal

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
