Specifications

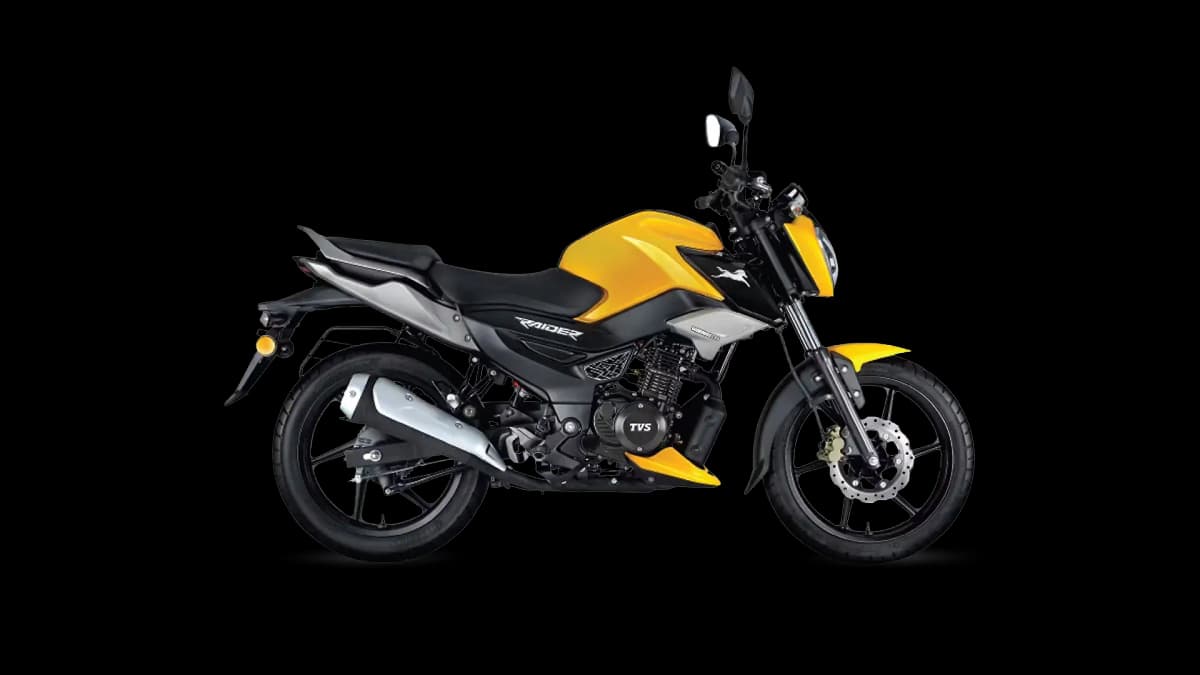

TVS Raider 125

Explore TVS Raider 125 specifications & features across all variants — engine, dimensions, safety and more.

₹82,000 - ₹97,050

Ex-showroom Price

Raider 125

Specifications & Features.

Key Specifications

Fuel TypePetrol
Engine1 Cylinder, Air/Oil Cooled, 3 Valves
Transmission5 Speed Manual
Power11.2 bhp @ 7500 rpm

Power & Performance

Max Power11.2 bhp @ 7500 rpm
Max Torque11.2 Nm @ 6000 rpm
Top Speed99 kmph
Transmission5 Speed Manual
Riding Range560 km
Riding ModesNo
Fuel TypePetrol
Displacement124.8 cc

Brakes & Wheels

Braking SystemSBT
Front BrakeDrum, 130 mm
Rear BrakeDrum, 130 mm
Wheel TypeAlloy
Wheel SizeFront - 17 inch, Rear - 17 inch
Tyre SizeFront - 80/100 - 17, Rear - 100/90 - 17
Tyre TypeTubeless
Tyre Pressure (Rider Only)Front - 25 psi, Rear - 28 psi

Suspensions & Chassis

Front SuspensionTelescopic
Rear Suspension5- Step Adjustable Monoshock Suspension
Rear Suspension Preload Adjuster1
Chassis TypeSingle Cradle Tubular Frame

Warranty and Services

Vehicle Warranty60,000 km or 5 years
No. of Free Services3
1st Service750-1000 km or 30-45 days
2nd Service6000 km or 180 days
3rd Service12000 km or 540 days

Dimensions

Kerb Weight123 kg
Seat Height780 mm
Ground Clearance180 mm
Overall Dimensions (LxWxH)2070 mm x 785 mm x 1028 mm
Wheelbase1326 mm
Fuel Tank Capacity10 litres
Reserve Fuel Capacity1.6 litres

Safety & Convenience

USB Charging PortYes
Cruise ControlNot Available
Start TypeKick and Self Start
Side Stand Engine/Motor Cut-off1
Adjustable leversNo
WindscreenNo
Center stand availability1
Saree Guard1

Mobile App Monitoring

Vehicle Location TrackingNo

Lights

HeadlightLED Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightLED
Pass Light1
Turn SignalHalogen Bulb

Seat & Storage

Under Seat StorageYes
Pillion SeatFlat Seat
Pillion ComfortFootrest, Grab rail

Additional Features

Additional FeaturesTop Speed Recorder

Instrument Cluster

SpeedometerDigital
TachometerDigital
Clock1
Gear Indicator1
Average Speed1
Instrument Console5 " LCD Display with Brightness Control
Mobile Phone ConnectivityNo
GPS & NavigationNo

Colors

TVS Raider 125 in Wicked Black (Single Seat)
Wicked Black (Single Seat)

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
