Specifications

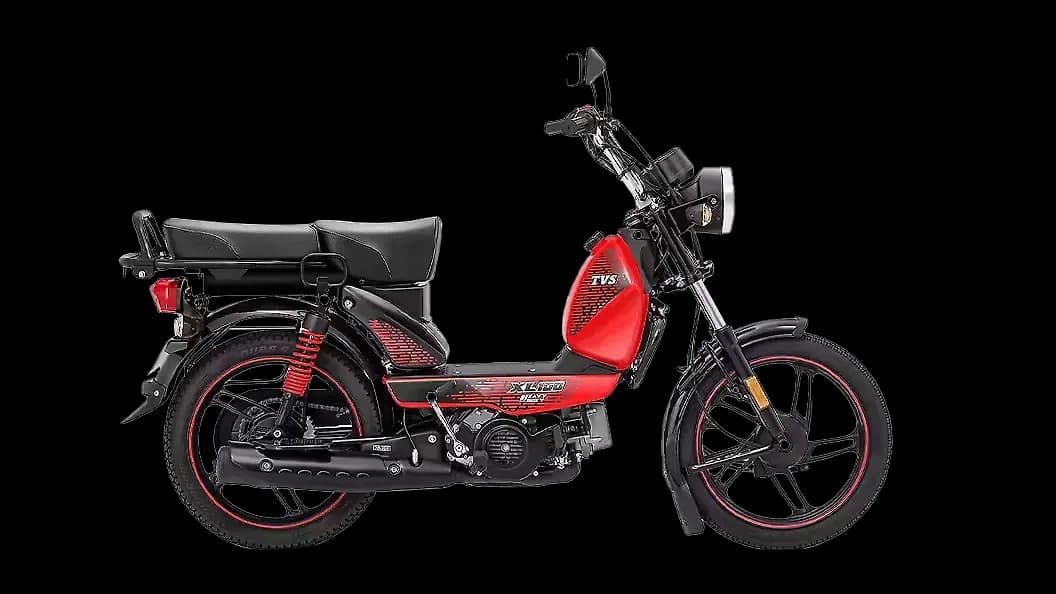

TVS XL 100 Heavy Duty

Explore TVS XL 100 Heavy Duty specifications & features across all variants — engine, dimensions, safety and more.

₹45,350 - ₹61,360

Ex-showroom Price

XL 100 Heavy Duty

Specifications & Features.

Key Specifications

Fuel TypePetrol
Engine1 Cylinder, Air Cooled, 2 Valves
TransmissionAutomatic
Power4.3 bhp @ 6000 rpm

Power & Performance

Max Power4.3 bhp @ 6000 rpm
Max Torque6.5 Nm @ 3500 rpm
Top Speed58 kmph
TransmissionAutomatic
Riding Range228 km
Riding ModesNo
Fuel TypePetrol
Displacement99.7 cc

Brakes & Wheels

Braking SystemSBT
Front BrakeDrum, 110 mm
Rear BrakeDrum, 110 mm
Wheel TypeSpoke
Wheel SizeFront - 16 inch, Rear - 16 inch
Tyre SizeFront - 2.50 - 16 41L, Rear - 2.50 - 16 41L
Tyre TypeTubed
Tyre Pressure (Rider Only)Front - 25 psi, Rear - 35 psi

Suspensions & Chassis

Front SuspensionTelescopic Hydraulic spring type
Rear SuspensionSwing arm with Hydraulic Shocks
Chassis TypeWelded Tubular step through construction

Warranty and Services

Vehicle Warranty36,000 km or 3 years
No. of Free Services3
1st Service500-750 km or 30 days
2nd Service2500-3000 km or 90 days
3rd Service5000-6000 km or 180 days

Dimensions

Kerb Weight88 kg
Seat Height787 mm
Ground Clearance145 mm
Overall Dimensions (LxWxH)1895 mm x 670 mm x 1077 mm
Wheelbase1228 mm
Fuel Tank Capacity4 litres
Reserve Fuel Capacity1.25 litres

Safety & Convenience

USB Charging PortYes
Cruise ControlNot Available
Start TypeKick Start
Side Stand Engine/Motor Cut-off1
Kill Switch1
Adjustable leversNo
WindscreenNo
Center stand availability2

Mobile App Monitoring

Vehicle Location TrackingNo

Lights

HeadlightHalogen Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightHalogen Bulb
Turn SignalHalogen Bulb

Seat & Storage

Under Seat StorageNo
Pillion SeatStepped Seat
Pillion ComfortFootrest, Grab rail

Additional Features

Additional FeaturesRemovable rear seat, I-TOUCH start, rear duragrip tyre, Easy ON-OFF switch

Instrument Cluster

SpeedometerAnalogue
TachometerNo
Instrument ConsoleAnalogue
Mobile Phone ConnectivityNo
GPS & NavigationNo
OdometerAnalogue
Hazard Warning Indicator1
High Beam Indicator1

Colors

TVS XL 100 Heavy Duty in Red (Alloy)
Red (Alloy)

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
