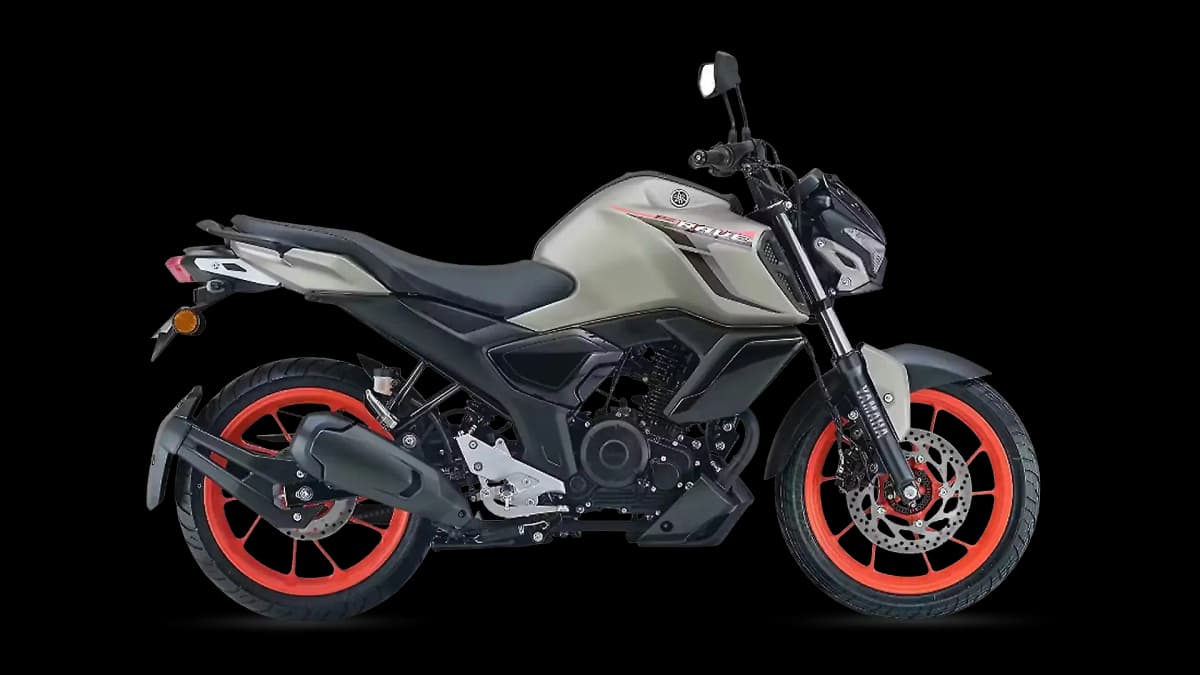

Yamaha FZ Rave
Explore Yamaha FZ Rave specifications & features across all variants — engine, dimensions, safety and more.
₹1.2 Lakh
Ex-showroom Price
Specifications & Features.
Key Specifications
Fuel TypePetrol
Engine1 Cylinder, Air Cooled, 2 Valves
Transmission5 Speed Manual
Power12.2 bhp @ 7250 rpm
Dimensions
Wheelbase1330
Ground Clearance165
Kerb Weight136 kg
Seat Height790 mm
Overall Dimensions (LxWxH)1990 mm x 780 mm x 1080 mm
Fuel Tank Capacity13 litres
Reserve Fuel Capacity1.7 litres
Power & Performance
Max Power12.2 bhp @ 7250 rpm
Max Torque13.3 Nm @ 5500 rpm
Transmission5 Speed Manual
Riding Range663 km
Riding ModesNo
Fuel TypePetrol
Displacement149 cc
Mileage - Owner Reported51 kmpl
Brakes & Wheels
Braking SystemSingle Channel ABS
Front BrakeDisc, 282 mm
Rear BrakeDisc, 220 mm
Wheel TypeAlloy
Wheel SizeFront - 17 inch, Rear - 17 inch
Tyre SizeFront - 100/80 - 17, Rear - 140/60R - 17
Tyre TypeTubeless
Tyre Pressure (Rider Only)Front - 29 psi, Rear - 33 psi
Suspensions & Chassis
Front SuspensionTelescopic Fork
Rear SuspensionSwingarm
Rear Suspension Preload Adjuster1
Chassis TypeDiamond
Warranty and Services
Vehicle Warranty30,000 km or 2 years
No. of Free Services4
1st Service1000 km or 30 days
2nd Service4000 km or 150 days
3rd Service7000 km or 270 days
4th Service10000 km or 390 days
Safety & Convenience
USB Charging PortNo
Start TypeSelf Start
Side Stand Engine/Motor Cut-off1
Kill Switch1
Adjustable leversNo
WindscreenNo
Center stand availability1
Saree Guard1
Mobile App Monitoring
Vehicle Location TrackingNo
Lights
HeadlightLED Projector Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightHalogen Bulb
Pass Light1
Turn SignalLED
Seat & Storage
Under Seat StorageNo
Pillion SeatStepped Seat
Pillion ComfortFootrest
Colors

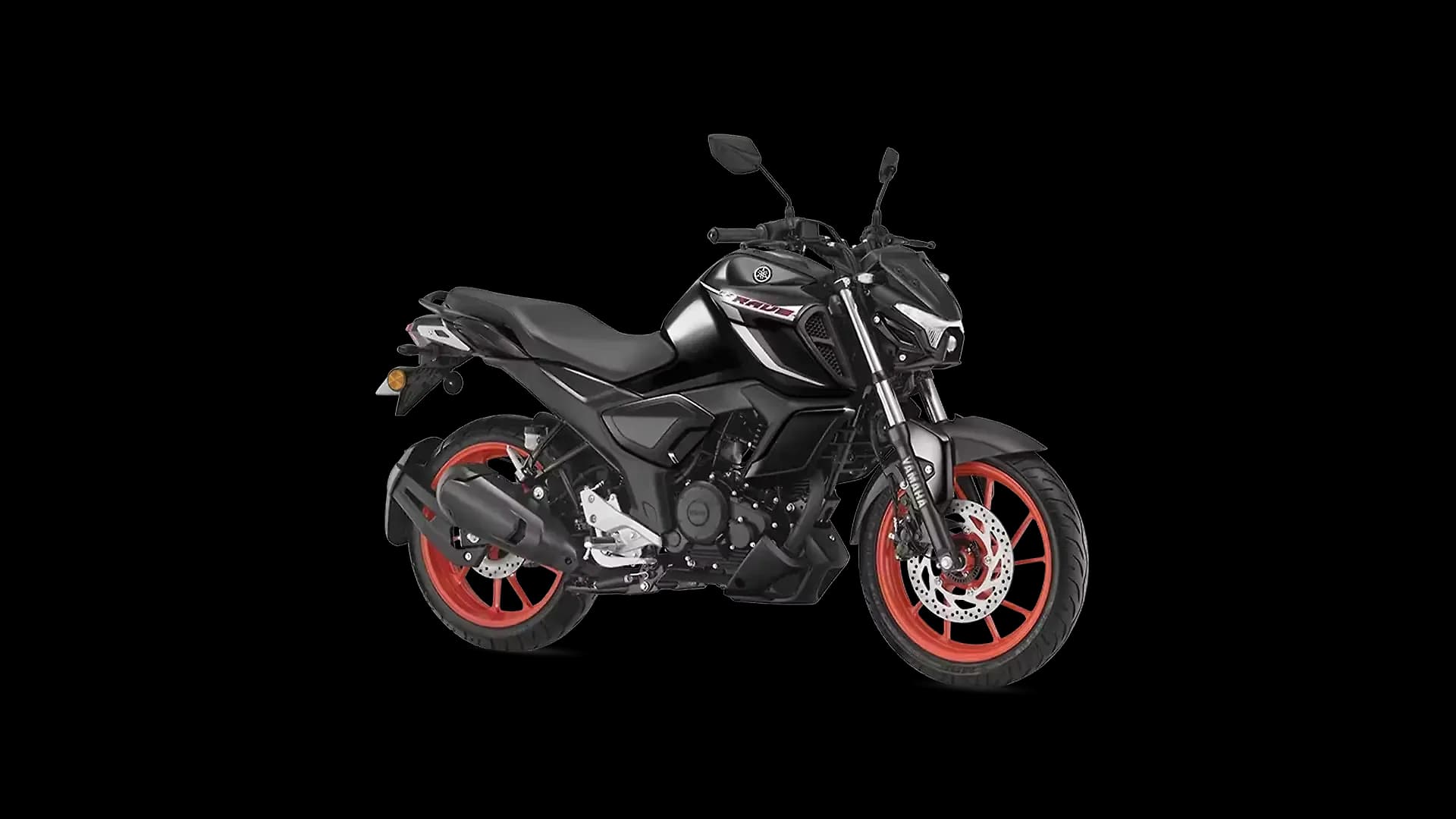

Metallic Black
*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
