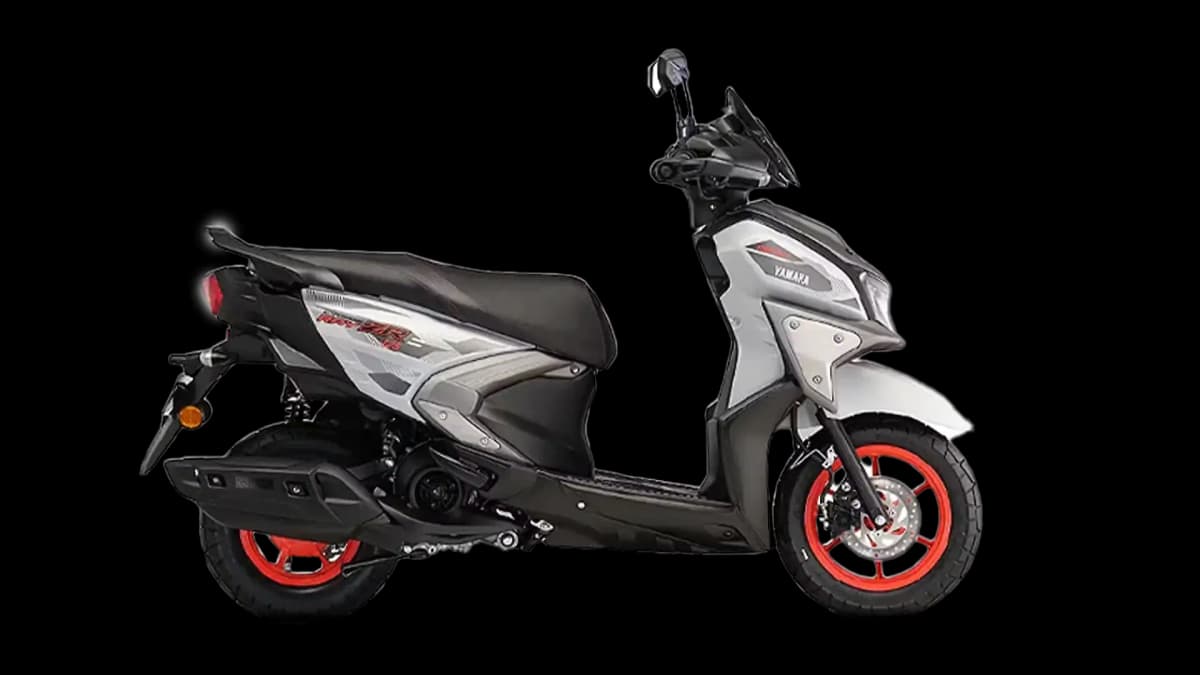

Yamaha Ray ZR 125
Explore Yamaha Ray ZR 125 specifications & features across all variants — engine, dimensions, safety and more.
₹74,960 - ₹87,560
Ex-showroom Price
Specifications & Features.
Key Specifications
Fuel TypePetrol
Engine1 Cylinder, Air Cooled, 2 Valves
TransmissionAutomatic
Power8.04 bhp @ 6500 rpm
Dimensions
Wheelbase1280
Ground Clearance145
Kerb Weight99 kg
Seat Height785 mm
Overall Dimensions (LxWxH)1880 mm x 685 mm x 1190 mm
Fuel Tank Capacity5.2 litres
Reserve Fuel Capacity1.3 litres
Power & Performance
Max Power8.04 bhp @ 6500 rpm
Max Torque10.3 Nm @ 5000 rpm
Top Speed90 kmph
TransmissionAutomatic
Riding Range265.2 km
Riding ModesNo
Fuel TypePetrol
Displacement125 cc
Brakes & Wheels
Braking SystemUBS
Front BrakeDrum, 130 mm
Rear BrakeDrum, 120 mm
Wheel TypeAlloy
Wheel SizeFront - 12 inch, Rear - 10 inch
Tyre SizeFront - 90/90 - 12, Rear - 110/90 - 10
Tyre TypeTubeless
Tyre Pressure (Rider Only)Front - 22 psi, Rear - 29 psi
Suspensions & Chassis
Front SuspensionTelescopic Fork
Rear SuspensionUnit Swing
Chassis TypeLight Weight Frame
Warranty and Services
Vehicle Warranty24,000 km or 2 years
No. of Free Services4
1st Service1000 km or 30 days
2nd Service4000 km or 150 days
3rd Service7000 km or 270 days
4th Service10000 km or 390 days
Safety & Convenience
Start TypeKick and Self Start
Side Stand Engine/Motor Cut-off1
Adjustable leversNo
WindscreenNo
Center stand availability1
Automatic Start Stop1
Silent Start1
Silencer Cover1
Mobile App Monitoring
Vehicle Location TrackingNo
Lights
HeadlightHalogen Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightHalogen Bulb
Pass Light1
Turn SignalHalogen Bulb
Seat & Storage
Under Seat Storage21 litres
Pillion SeatYes
Pillion ComfortFootrest, Grab rail
Helmet Hooks2
Luggage HooksFront/Below Handlebar
Additional Features
Additional FeaturesPower Assist, Smart Motor Generator (SMG) System, Quiet Engine Start System, Automatic Stop & Start System
Colors

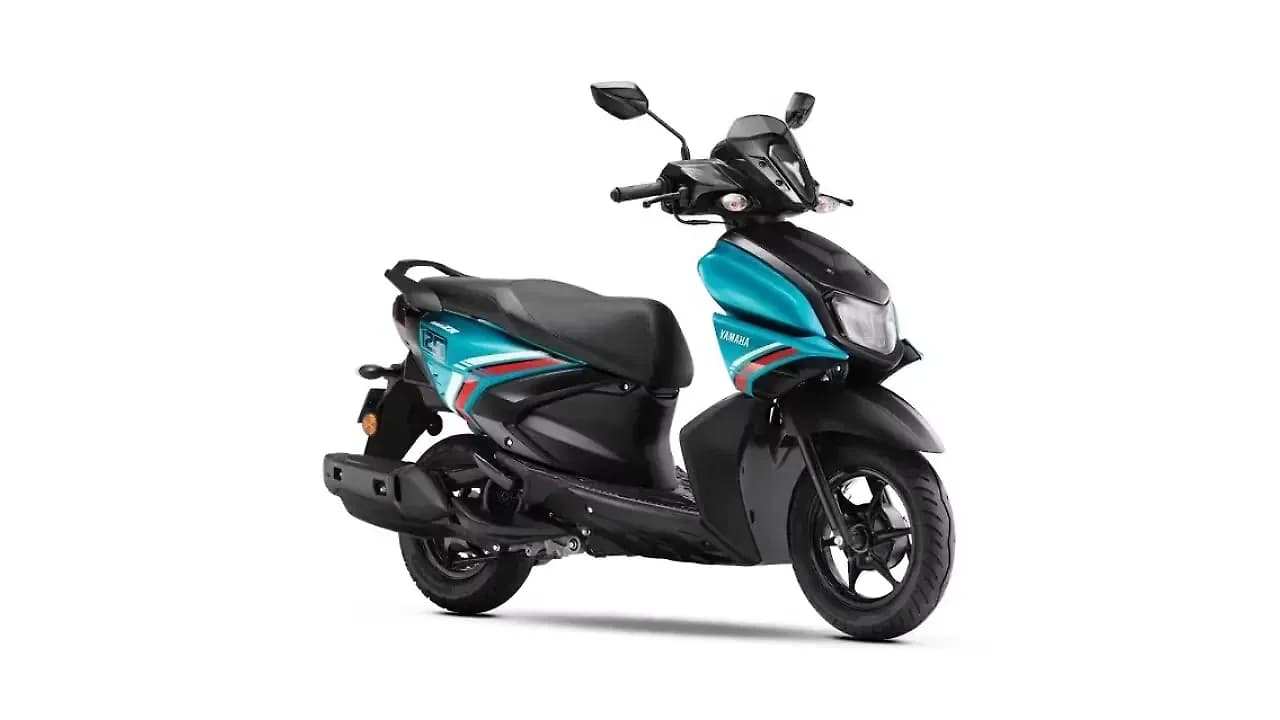

Cyan Blue-Drum
*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
