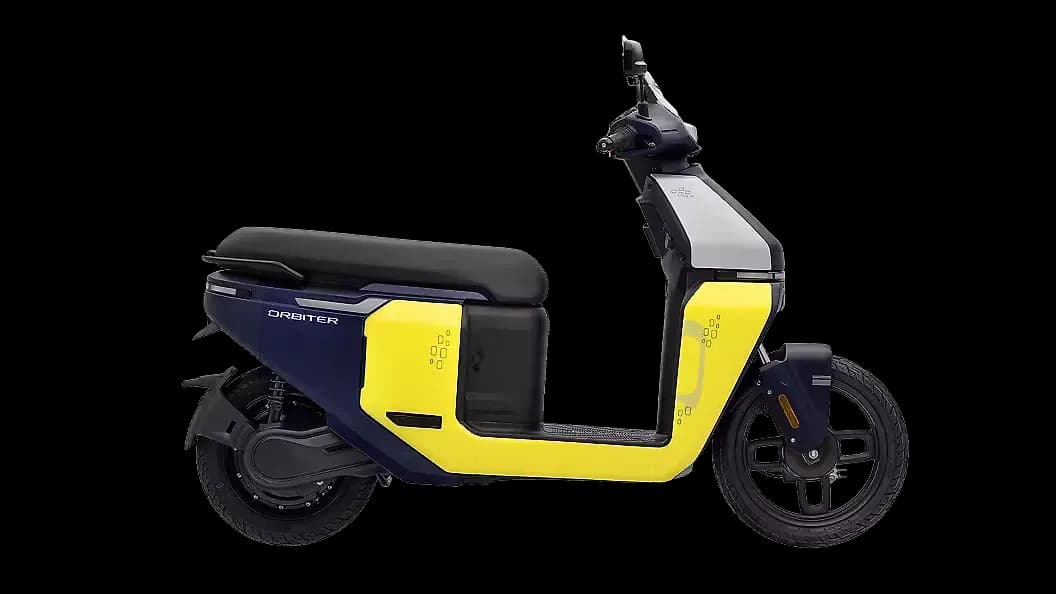

TVS Orbiter
Explore TVS Orbiter specifications & features across all variants — engine, dimensions, safety and more.
₹1.05 Lakh - ₹88,250
Ex-showroom Price
Specifications & Features.
Key Specifications
Fuel TypeElectric
Engine-
TransmissionAutomatic
Power2.5 kW
Dimensions
Ground Clearance165
Kerb Weight101 kg
Seat Height760 mm
Seat Length845 mm
Overall Dimensions (LxWxH)1855 mm x 728 mm x 1284 mm
Carrying Capacity150 kg
Power & Performance
Max Power2.5 kW
Top Speed68 kmph
TransmissionAutomatic
Riding Range86 km
Riding ModesEco and City
Fuel TypeElectric
Motor TypeBLDC Hub Motor
Gradeability7 Degree
Battery & Charging
Battery Capacity1.8 kWh
Charging Time0-80% - 2.2 hr
Battery TypeLithium Ion
No. Of Batteries1
Battery IP RatingIP67
Charger TypePortable Charger
Charger Output650w
Charger CostNo additional cost (Included in the vehicle price)
Brakes & Wheels
Braking SystemCBS
Front BrakeDrum
Rear BrakeDrum
Wheel TypeAlloy
Wheel SizeFront - 14 inch, Rear - 12 inch
Tyre SizeFront - 90/80 - 14, Rear - 90/90 - 12
Tyre TypeTubeless
Suspensions & Chassis
Front SuspensionTelescopic Fork
Rear SuspensionDual Shock Absorber
Chassis TypeSteel Tube
Warranty and Services
Battery Warranty3 year or 50,000 km
Motor Warranty3 year
Safety & Convenience
USB Charging PortFront
Cruise Control1
Start TypeSelf Start
Side Stand Engine/Motor Cut-off1
Anti Theft System1
Hill Assist1
Reverse ModeYes with Parking Assist
Regenerative Braking1
Mobile App Monitoring
Battery Status1
Live Charging Status1
Nearby Charging Stations1
Tow & Theft Notifications1
Geo Fencing1
Lights
HeadlightLED Headlamp
DRLs (Daytime Running Lights)1
Brake/Tail LightLED
Pass Light1
Turn SignalLED
Seat & Storage
Under Seat Storage34 litres
Pillion SeatYes
Pillion ComfortFootrest, Grab rail
Front Storage Box1
Additional Features
Additional FeaturesTime Fencing, Towing, Crash/Fall Alerts
Colors
Stellar Silver
*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
